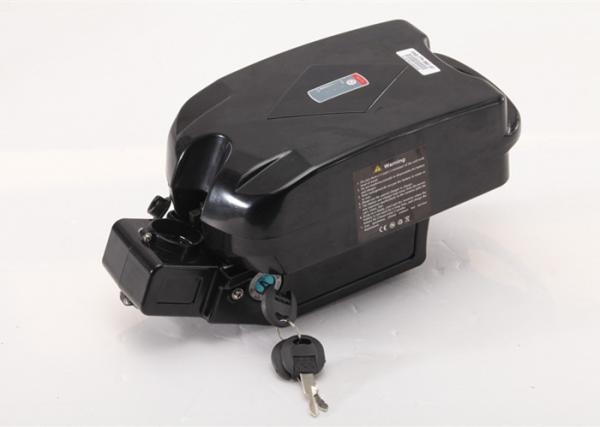

    Frog Case Electric Bike Spare Parts 36V 10AH Lithium Ion Battery Custom Size

    Ask Lasest Price
    Brand Name : BONEN
    Model Number : LY-L10S004-039
    Price : Negotiable
    Delivery Time : 5-10 days
    Payment Terms : Paypal,T/T,Western Union
    • Product Details
    • Company Profile

    Frog Case Electric Bike Spare Parts 36V 10AH Lithium Ion Battery Custom Size

    Frog case E-bike Battery 36V 10AH Lithium ion Battery for Electric bike Electric Bike Coversion Kit Including Charger


    18650 E-Bike Battery Pack 36V/10.4Ah
    Model: LY-L10S004-039
    ItemSpecificationRemark
    Nominal capacity10400mAhSAMSUNG ICR18650-26F
    Nominal voltage36V3.7V / 1Cell
    Charging voltage42V±0.05V4.2V / 1Cell
    Charging methodCC/CV(Constant-current and -Voltage with Limited current
    Standard charging time2000mA/6hour, 3000mA/3.5hourBattery capacity÷charging current×1.5
    charging current5200mA(0.5C)0 ~ +40
    Maximum charging current10400mA(1C)0 ~ +40
    Continuous discharge current20.8A(2C)-20 ~ +60
    Discharge cutoff voltage25V2.5V / 1Cell
    Short circuit protectionExterior short circuitAutomatic recovery
    Internal resistance200mΩAC Impedance 1kHz
    Cycle life≥500
    Operating temperatureStandard Charge0 ~ +40
    Standard Discharge-20 ~ +60
    Outline dimensionL314*W139*T157mmLength x wide x height
    Pre-wiredRed = Positive,Black = Negative
    Protection Circuit Board
    Maximal continuous charging current5A
    Maximal continuous Discharging current15A
    Over-charge detection voltage4.25V±0.025Vsingle cell
    Over-charge release voltage4.15V±0.05Vsingle cell
    Over-charge detection delay time0.5S—1.5Ssingle cell
    Over-discharge detection voltage2.50V±0.08Vsingle cell
    Over-discharge release Voltage3.0±0.10Vsingle cell
    Over-discharge detection delay time50—150mSsingle cell
    Over-current detection50±10Acan adjust
    Over-current delay time5—15mS

    Frog Case Electric Bike Spare Parts 36V 10AH Lithium Ion Battery Custom Size


    Quick Details

    Place of Origin:Guangdong, China (Mainland)

    Brand Name:leadyo

    Model Number:18650

    Type:Li-Ion

    Size:customized

    Warranty:1 Year

    Cycle life:500 Times 80% DOD

    Battery type:Lithium Iron Battery Cell

    Certificate:CE/RoHS/UN38.3/MSDS

    Voltage:3.7v/Cell

    Capacity:20ah

    OEM/ODM:Accepatable

    Application:ebike
